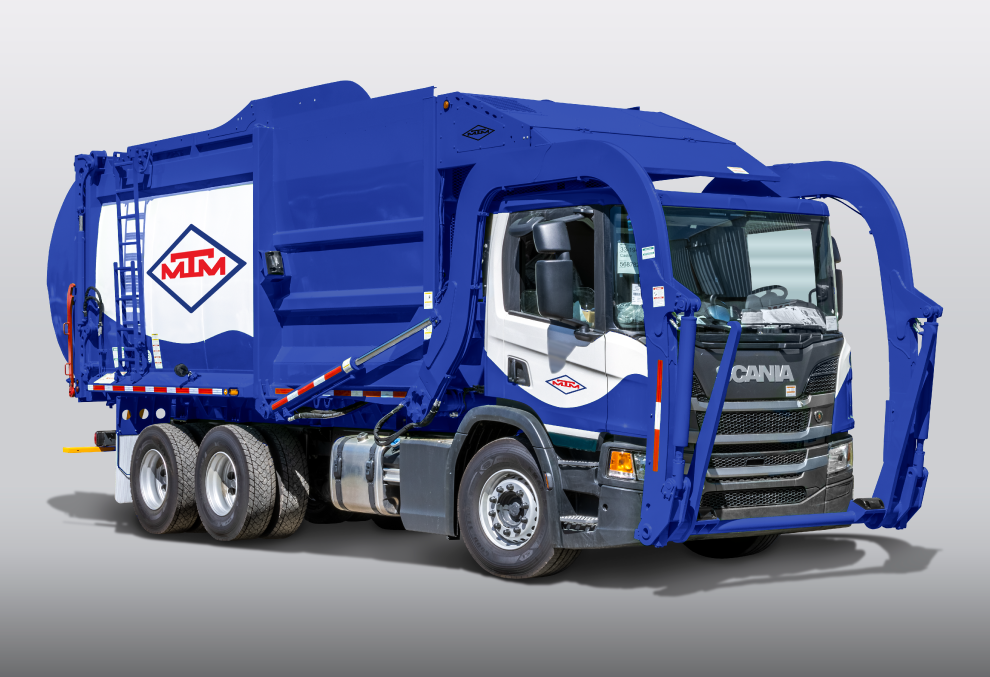

Atlantic Frontend Loader
Power and Capacity Without Limits
Designed to tackle the most demanding challenges, the Atlantic Front End Loader redefines efficiency in waste collection. With a compaction capacity exceeding 500 kg/m³ and an arm with a nominal strength of 10,000 lb, this equipment is synonymous with power and precision. Its robust structure and 40 yd³ capacity make it the ideal solution for large-scale operations.

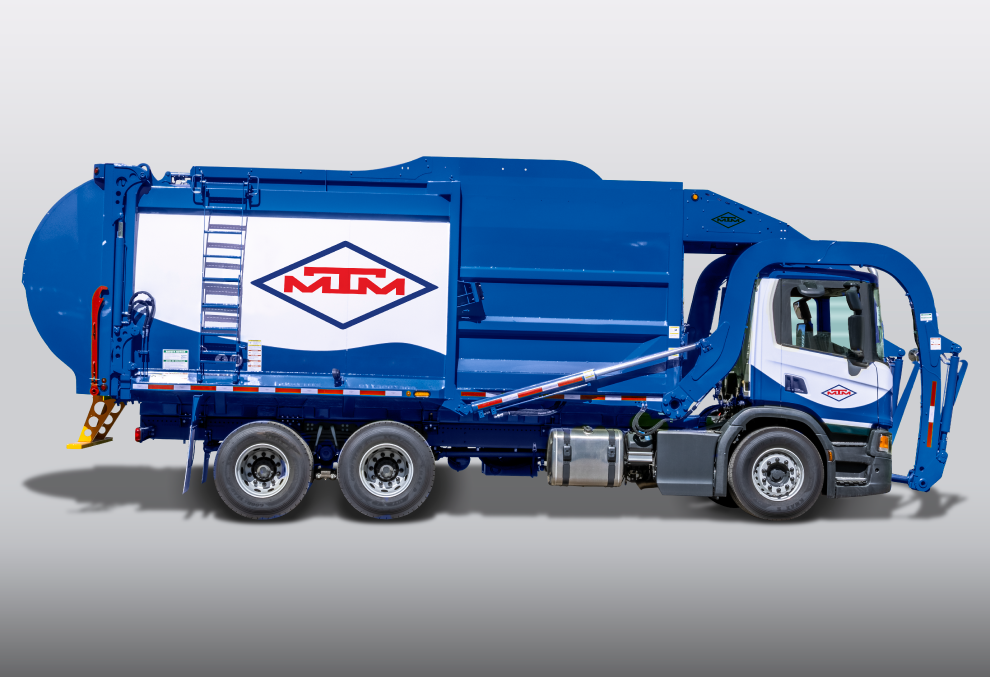

General Equipment Dimensions
- Length, arms down, rear gate open
- 487″ (12,362 mm)
- Length, arms down, rear gate closed
- 454″ (11,540 mm)
- Length, arms in storage position, rear gate closed
- 294″ (7,473 mm)
- Length, arms in storage position, rear gate open
- 327″ (8,301 mm)
- Height: Arms/fork down
- 119” (3,012 mm)
- Height: Arms in storage position/fork up
- 171″ (4,349 mm)
- Height: Rear gate raised
- 182″ (4,610 mm)
- Total body width
- 102″ (2,591 mm)
Hydraulic Specifications:
- Pump: Vane or gear pump with pack-on-the-go flow control system.
- Control Valves: VA35, MRV adjustment – 2,500 psi.
- Oil Reservoir Capacity: 50 gallons.
- Return Filter: 5 microns.
- Suction Strainer: Stainless steel 100 mesh with magnets.

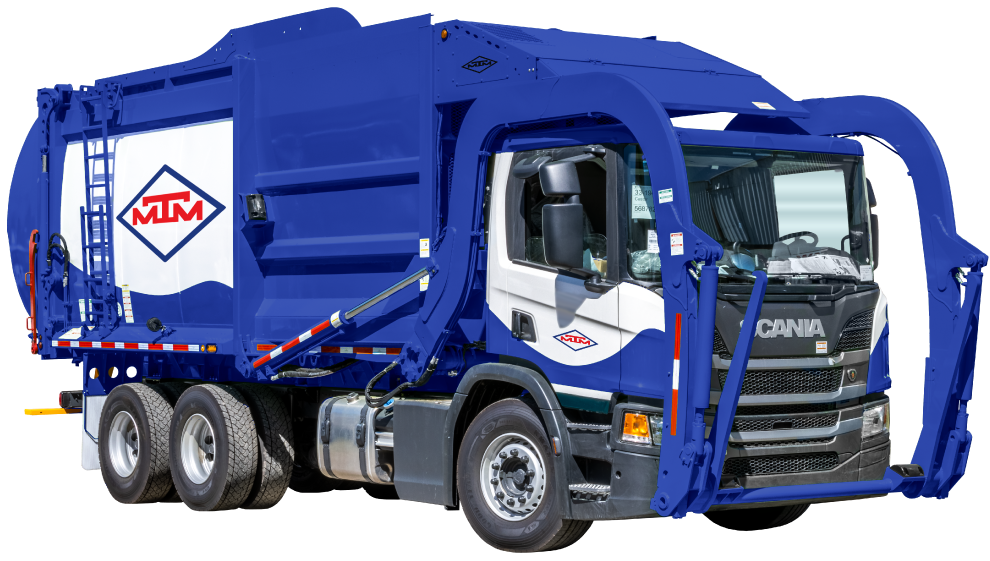

Performance
- The arm’s 10,000 lb nominal capacity handles heavy lifting.

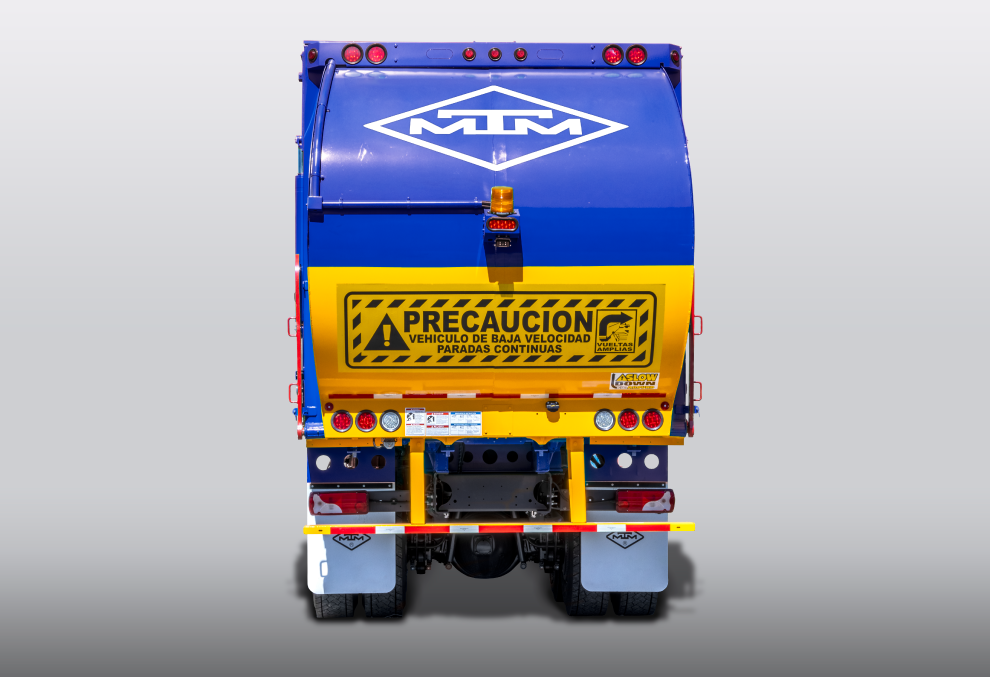

- The rear gate locks at eight points, ensuring it stays closed and eliminates leaks.
- Compaction force of 118,000 psi.
Chassis Specifications Requirements
| Model | 40 yd³ |
| Chassis | 3 axles (6×4) |
A 35,000 kg / 77,000 lb gross vehicle weight chassis available in the market is required.

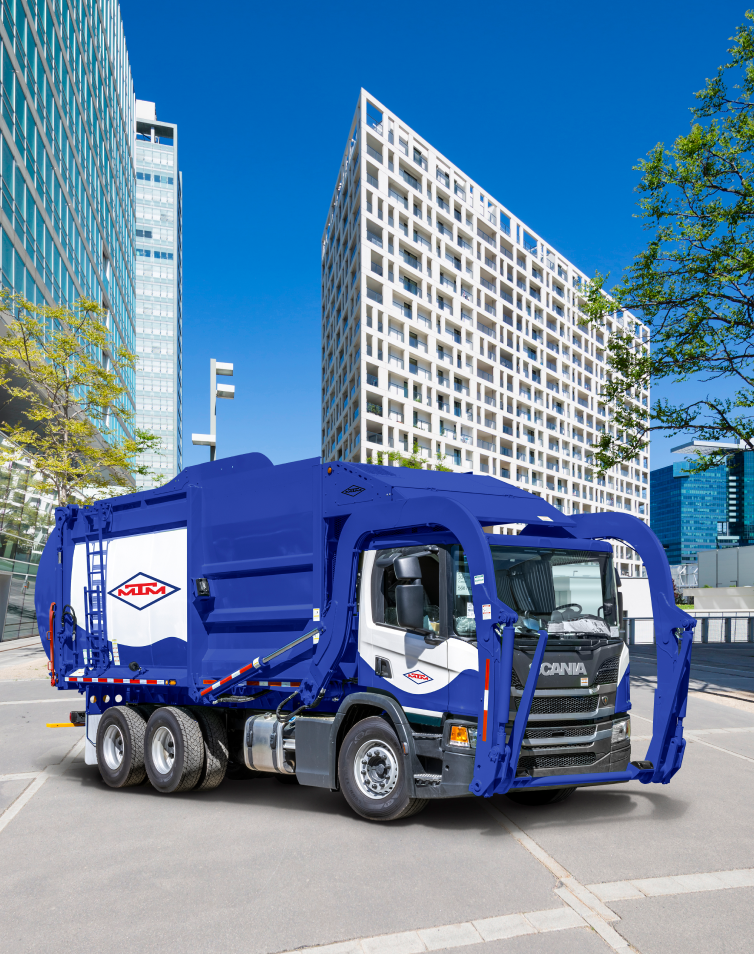

Construction Specifications
- The Atlantic Front End Loader achieves a compaction capacity greater than 500kg/m³.
- Semi-elliptical body design made of AR200 high-strength steel panels with hardness >200 Brinell on the floor, and AR450 steel on the walls, overlapped for better stress distribution and body rigidity.
- High-efficiency compaction and sweeping system, using exclusive Excaliber hydraulic cylinders with extremely high surface hardness due to a chemical-thermal nitriding treatment, and a high-efficiency hydraulic circuit with low fluid demand.
- The box floor is smooth to prevent stress concentration. Arms are specifically designed for wider European cabins, allowing the lifting of containers up to 10,000 lb, which the equipment can dump into its upper hopper.
- The paint and surface finish are achieved through a pre-cleaning shot blasting process, followed by primer application, polyurethane-based paint, and final curing in enclosed ovens.
- Additionally, the maintenance of our boxes has been improved by redesigning the lubrication points of the pivots that allow rotation and movement during regular operation.
