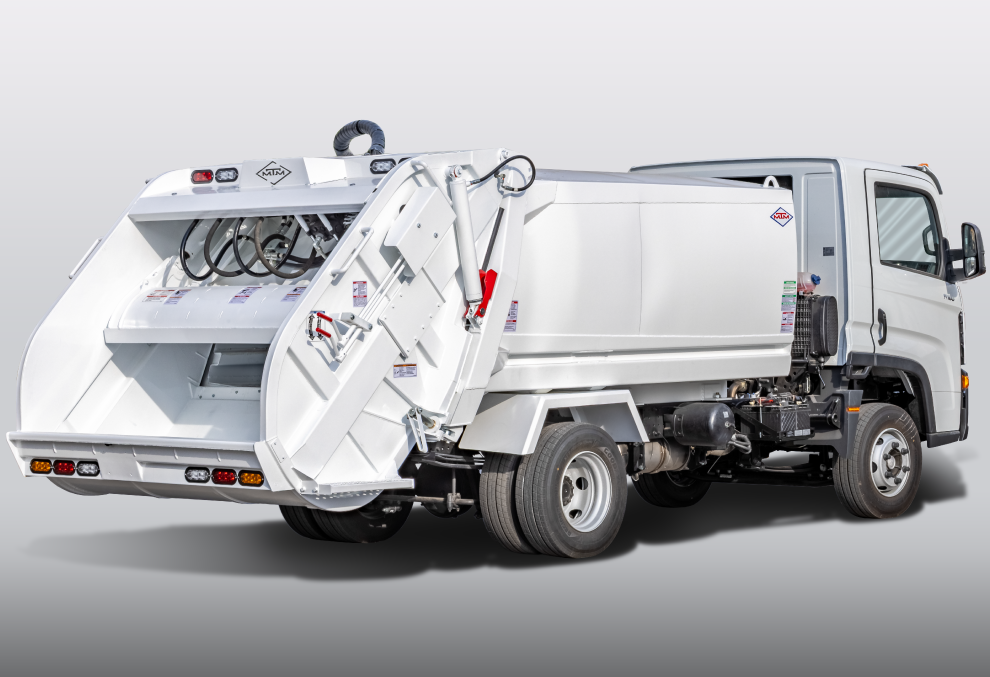

Global Packer

Efficient Compaction for Versatile Operations
The Global Packer is the ideal solution for those looking for an agile, efficient, and high-performance compactor. With a compaction capacity exceeding 415 kg/m³ and an 8 yd³ model, this equipment offers the perfect balance between size, maneuverability, and power, ensuring fast and efficient work cycles.

8 Yd³

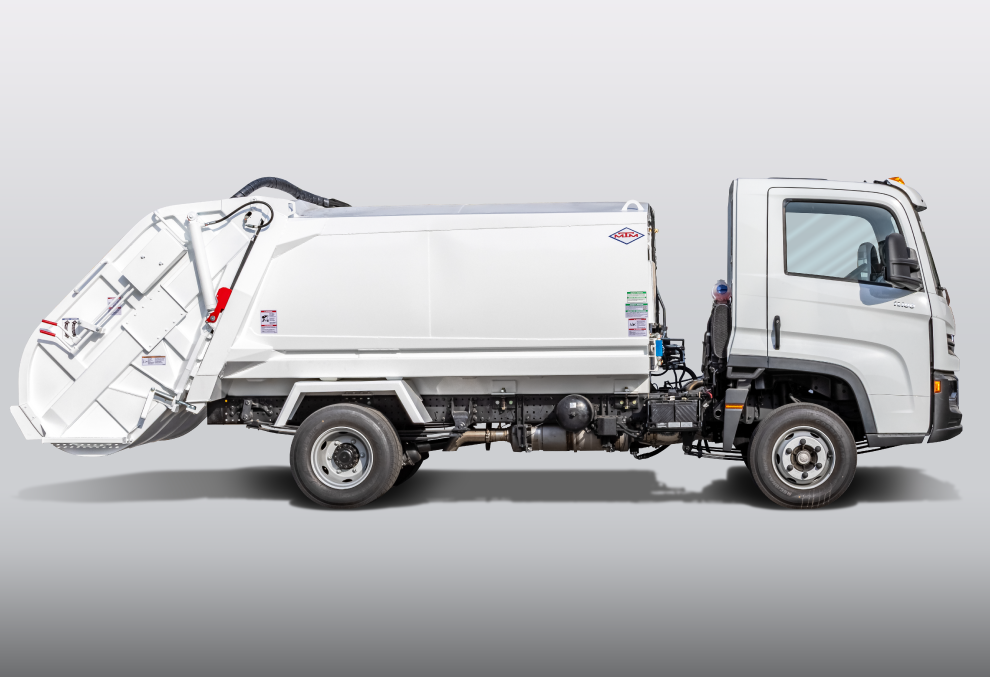

General Equipment Dimensions

Dimensiones
MTM 8 Yd³
  • Total length
  • 191” (4,851.4mm)
  • Total height
  • 81.4” (2,067.56mm)
  • Height from chassis to top of body
  • 61” (1,550mm)
  • Hopper capacity.
  • 1.9 Yd3
  • Hopper opening.
  • 56” (1,422.4mm)
  • Inside Hopper width.
  • 76” (1,922.78mm)
  • Hopper total width.
  • 97” (2,448.56mm)

Hydraulic Specifications:

Dimensiones
  • Hydraulic pump Mod. P350, 1.5, CCW, 13T, 2/4B B.
  • Maximum operating pressure: 2500 psi
  • Working flow: 95/25 Lts/gal @ 1300 rpm
  • Hydraulic tank capacity: 148.42 Lts/39.21 gal.

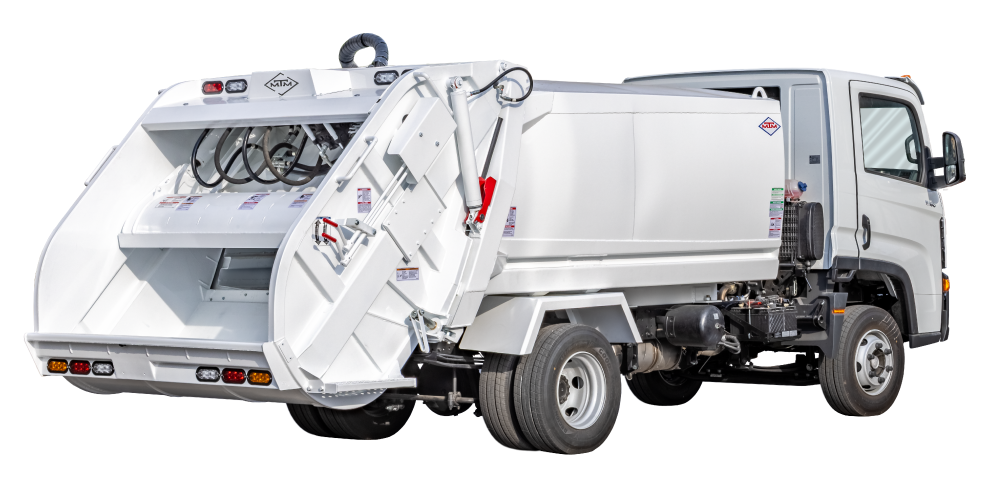

Performance

  • Slider and blade cycle: 18-21 seconds (Cycle times may vary slightly).
  • Compaction: 700 pounds per yard, depending on refuse density.
Learn more

Chassis Specifications Requirements

Dimensiones
Model 8 yd³
Chassis 2 axles (4×2)
Gross Vehicle Weight 24,912 lb (11,300 kg)
Front Axle 8,818 lb (4,000 kg)
Tandem Axle 16,094 lb (7,300 kg)

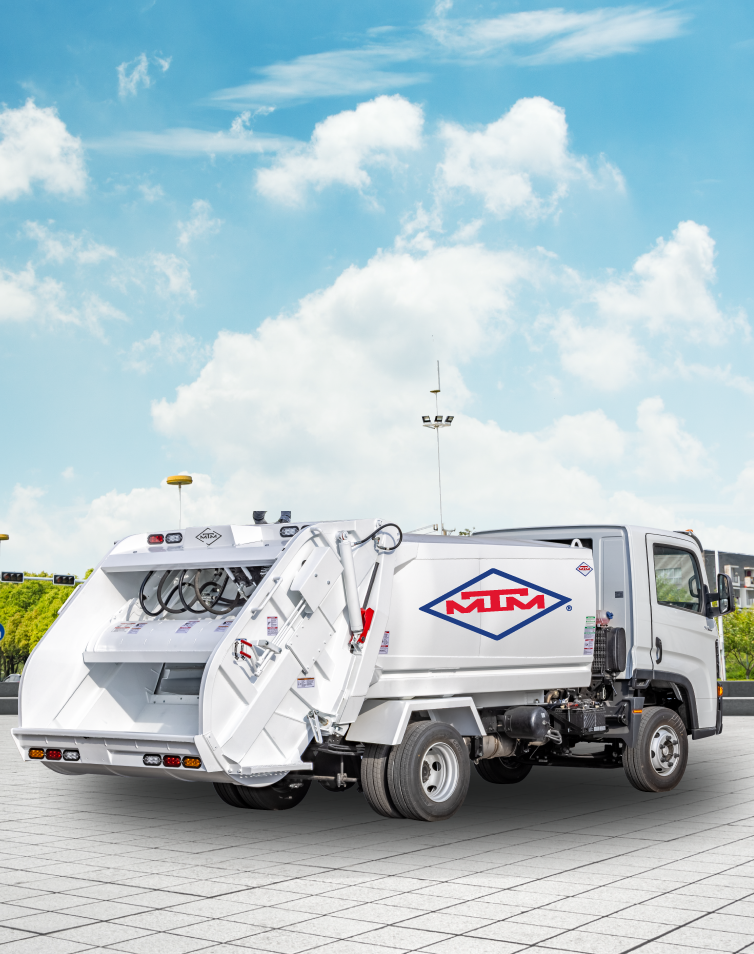

Construction Specifications

Dimensiones
  • The Global Packer achieves a compaction capacity greater than 415kg/m³.
  • Semi-elliptical body design made of Hardox 450 steel.
  • High-efficiency compaction and sweeping system, utilizing hydraulic cylinders with very high surface hardness due to a chemical-thermal nitriding treatment, and a high-efficiency hydraulic circuit with low fluid demand.
  • The box floor is smooth to prevent stress concentration, reinforced with central and lateral loaders, facilitating cleaning and maintenance.
  • The paint and surface finish are achieved through a pre-cleaning shot blasting process, followed by primer application, polyurethane-based paint, and final curing in enclosed ovens.
  • Additionally, the maintenance of our boxes has been improved by redesigning the lubrication points of the pivots that allow rotation and movement during regular operation.
