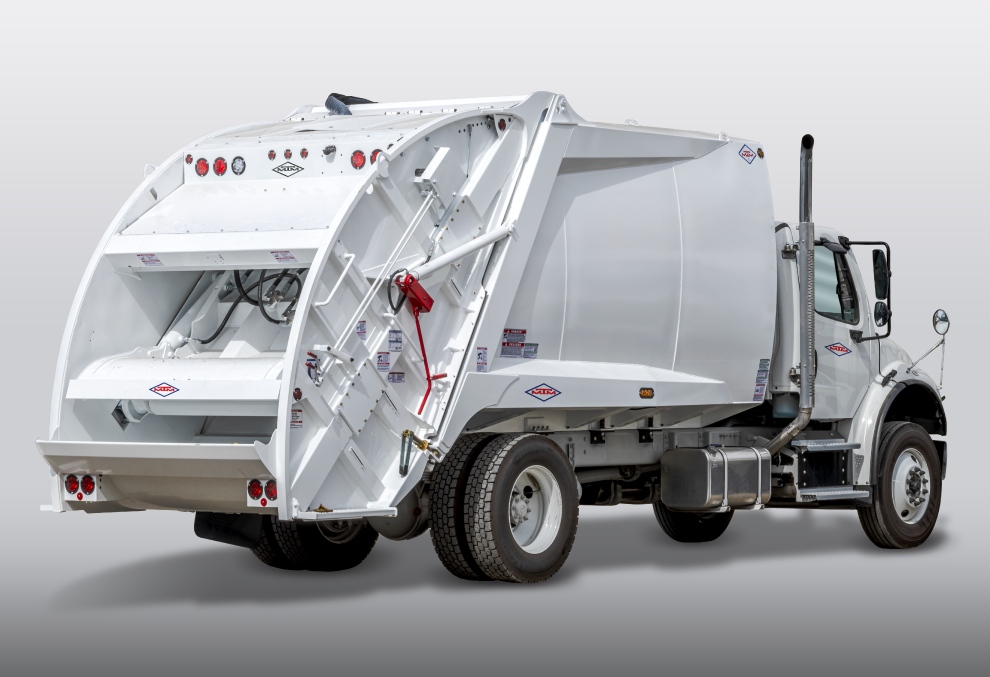

M2

Extreme Durability and Compaction
When it comes to maximum efficiency, the M2 stands out with its compaction capacity exceeding 700 kg/m³ and impeccable performance in daily operations. Available in three models (20 yd³, 25 yd³, and 28 yd³), this unit offers the perfect combination of strength, low maintenance costs, and cutting-edge technology to maximize productivity.

20 Yd³
25 Yd³
28 Yd³

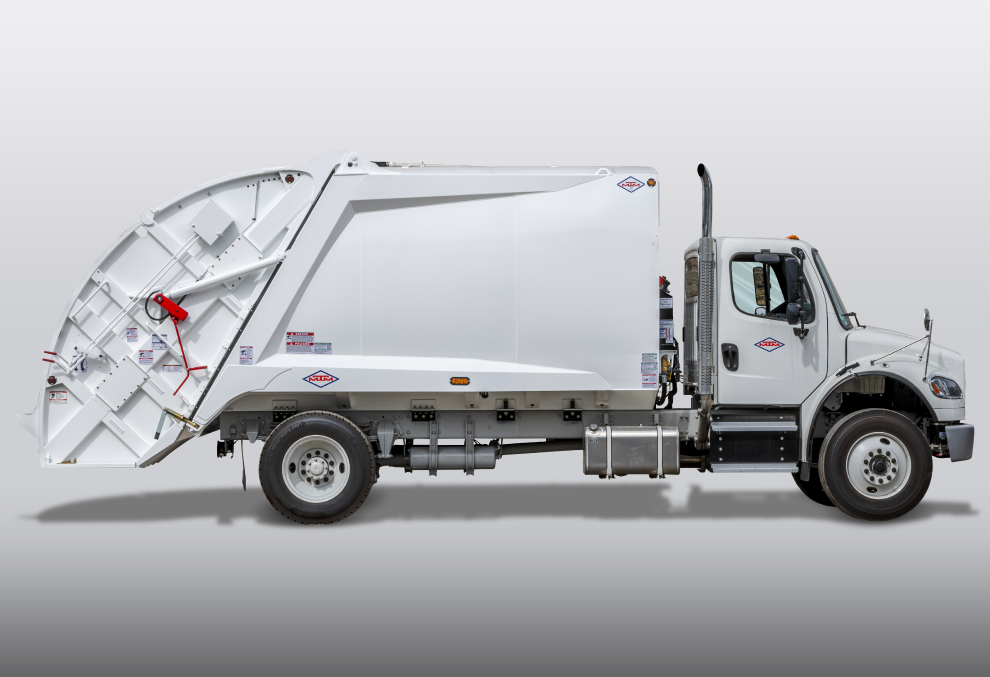

General Equipment Dimensions

Dimensiones
MTM 20 Yd³
  • Total length
  • 245” (6,227mm)
  • Total height
  • 121” (3,073mm)
  • Height from chassis to top of body.
  • 96” (2,438mm)
  • Hopper capacity.
  • 3 Yd³
  • Hopper opening.
  • 57.19” (1,453mm)
  • Inside Hopper width.
  • 80.19” (2,037mm)
  • Hopper total width.
  • 102” (2,591mm)
MTM 25 Yd³
  • Total length
  • 281” (7,123mm)
  • Total height
  • 121” (3,073mm)
  • Height from chassis to top of body.
  • 96” (2,438mm)
  • Hopper capacity.
  • 3 Yd³
  • Hopper opening.
  • 57.19” (1,453mm)
  • Inside Hopper width.
  • 80.19” (2,037mm)
  • Hopper total width.
  • 102” (2,591mm)
MTM 28 Yd³
  • Total length
  • 300” (7,602mm)
  • Total height
  • 121” (3,073mm)
  • Height from chassis to top of body.
  • 96” (2,438mm)
  • Hopper capacity.
  • 3 Yd³
  • Hopper opening.
  • 57.19” (1,453mm)
  • Inside Hopper width.
  • 80.19” (2,037mm)
  • Hopper total width.
  • 102” (2,591mm)

Hydraulic Specifications:

Dimensiones
  • Hydraulic pump: Model P350 2.5, CW, 14T, 2B C.
  • Working flow: 35 gpm @ 1500 RPM.
  • Maximum operating pressure: 2800 psi.
  • Hydraulic tank capacity: 151 lt /40 gal.
  • Total system capacity: 256.42 lt /67.74 gal.

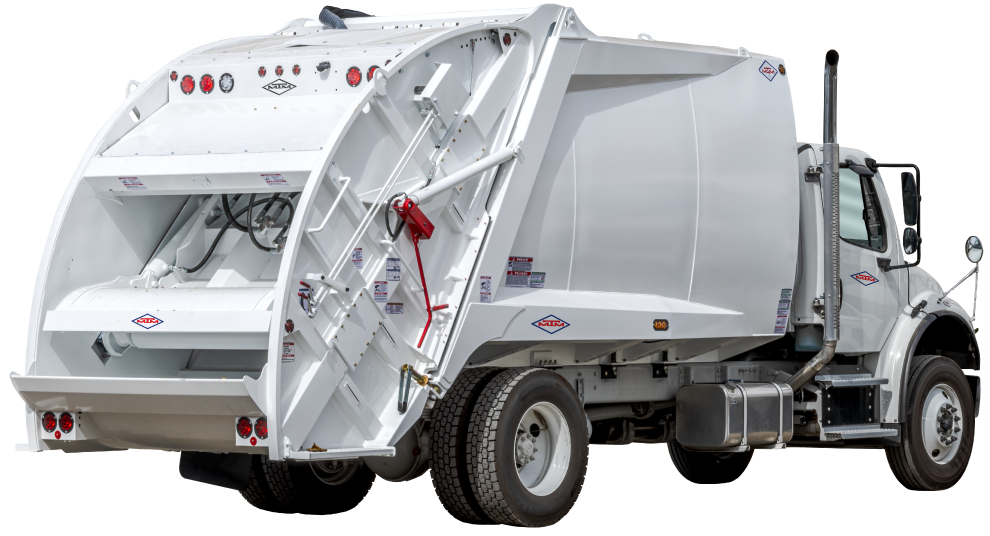

Performance

  • Slide and blade cycle: 23-27 seconds (Cycle times may vary slightly).
  • Compaction: 900-1300 pounds per yard, depending on refuse density.
Learn more

Chassis Specifications Requirements

Dimensiones
Model 20 yd³ 25 yd³ 28 yd³
Chassis 2 axles (4×2) 3 axles (6×4) 3 axles (6×4)
Gross Vehicle Weight 58,422 lb (26,500 kg) 65,036 lb (29,500 kg) 69,446 lb (31,500 kg)
Front Axle 12,125 lb (5500 kg) 15,432 lb (7,000 kg) 17,637 lb (8,000 kg)
Tandem Axle 46,297 lb (21,000 kg) 49,604 lb (22,500 kg) 51,809 lb (23,500 kg)

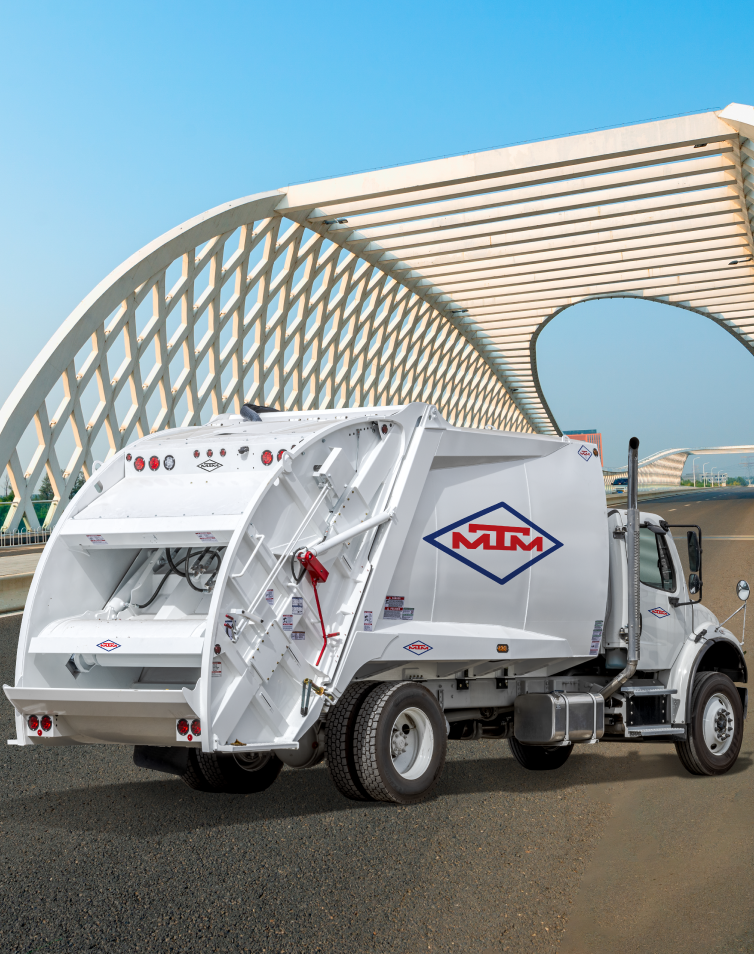

Construction Specifications

Dimensiones
  • The M2 box is recognized for its compaction capacity exceeding 715kg/m³, high durability, impeccable performance in daily operations, and low maintenance costs.
  • Semi-elliptical body design made of high-strength AR200 steel.
  • Use of hydraulic cylinders with very high surface hardness due to a chemical-thermal nitriding treatment, and a high-efficiency hydraulic circuit with low fluid demand.
  • The box floor is smooth to avoid stress concentration, reinforced with central and side loaders, facilitating cleaning and maintenance.
  • Paint and surface finish are achieved through prior cleaning with shot blasting, primer application, polyurethane-based paint, and final curing in enclosed ovens.
  • Additionally, box maintenance was improved by redesigning the lubrication points of the pivots that allow rotation and movement during regular operation.
