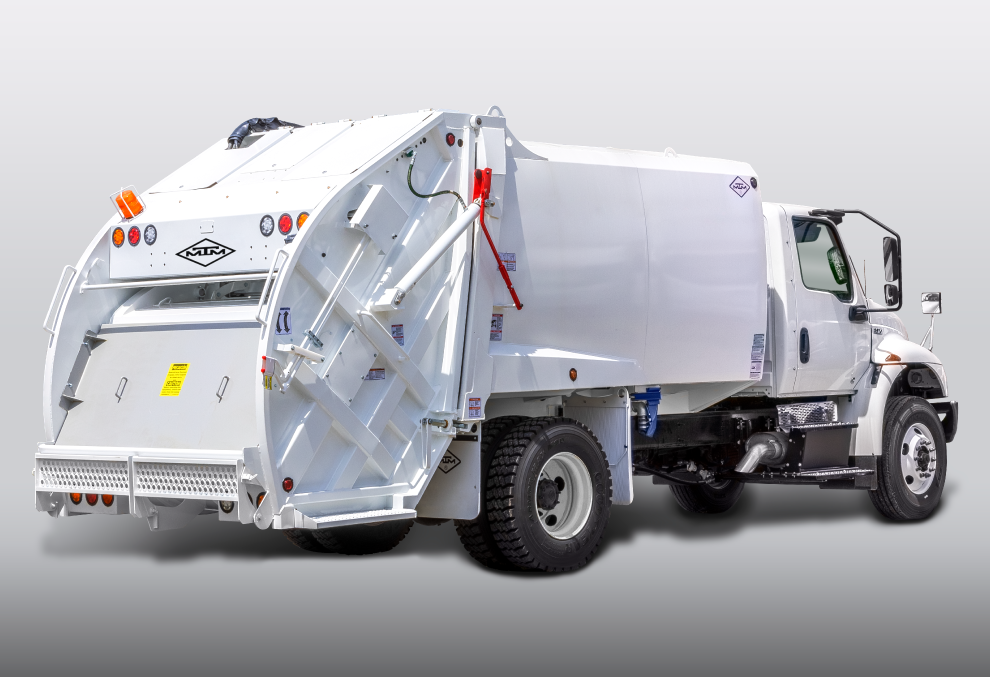

Metropak

Innovation Meets the Power of refuse packer
The undisputed champion in refuse compaction. Its semi-elliptical design, combined with a compaction capacity that defies conventional standards, redefines excellence in refuse collection. With three different models to suit diverse capacity needs, METROPAK stands as the pinnacle of innovation in the industry.

17 YD³
20 yd³
25 yd³

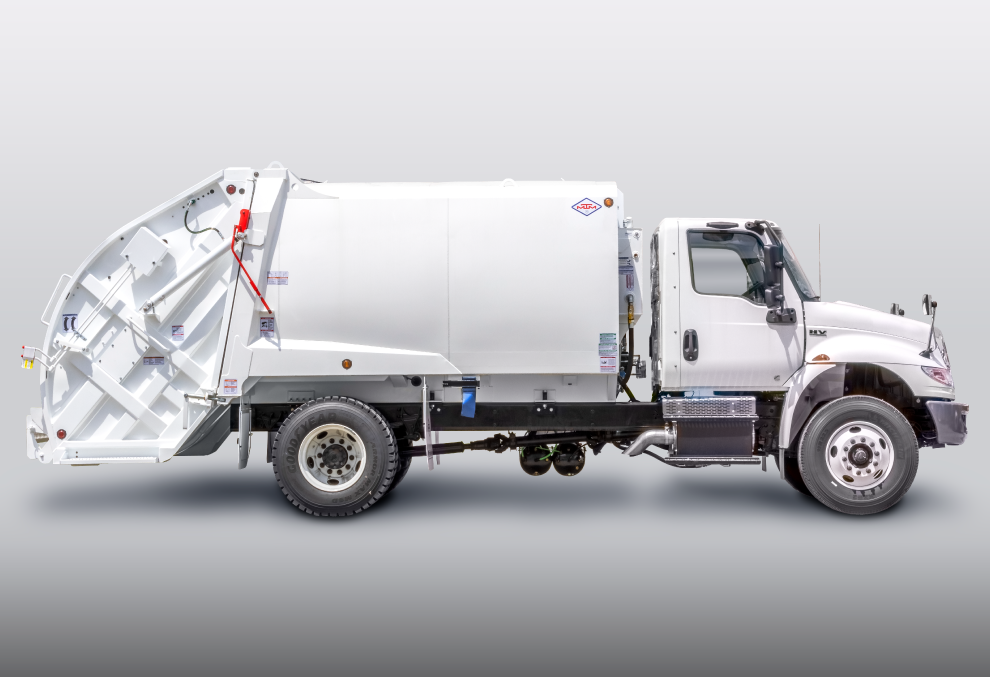

General Equipment Dimensions

Dimensiones
MTM 17 YD³
  • Total length
  • 206.3” (5,240 mm)
  • Total height
  • 105” (2,667 mm)
  • Height from chassis to top of body.
  • 81” (2,057 mm)
  • Hopper capacity.
  • 3 Yd³.
  • Hopper opening.
  • 50” (1,270 mm)
  • Hopper total width.
  • 103.5” (2,629 mm)
  • Inside Hopper width.
  • 80” (2,032 mm)
MTM 20 yd³
  • Total length
  • 228.24” (5,797 mm)
  • Total height
  • 105” (2,667 mm)
  • Height from chassis to top of body.
  • 81” (2,057 mm)
  • Hopper capacity.
  • 3 Yd³.
  • Hopper opening.
  • 50” (1,270 mm)
  • Hopper total width.
  • 103.5” (2,629 mm)
  • Inside Hopper width.
  • 80” (2,032 mm)
MTM 25 yd³
  • Total length
  • 268.5” (6,820 mm)
  • Total height
  • 105” (2,667 mm)
  • Height from chassis to top of body.
  • 81” (2,057 mm)
  • Hopper capacity.
  • 3 Yd³.
  • Hopper opening.
  • 50” (1,270 mm)
  • Hopper total width.
  • 103.5” (2,629 mm)
  • Inside Hopper width.
  • 80” (2,032 mm)

Hydraulic Specifications

Dimensiones
  • Hydraulic pump: Model P350, 1.5, CCW, 13T, 2/4B-B.
  • Maximum operating pressure: 2500 psi.
  • Working flow @1300 rpm: 95 lt. /25 gal.
  • Hydraulic tank capacity: 95 lt. /25 gal.
  • Total system capacity: 140 lt. /37 gal.
  • Cycle time: 24 seconds.
  • Hydraulic tank capacity (25 YD³): 152 lt. /45 gal.
  • Total system capacity (25 YD³): 197 lt. /52 gal.

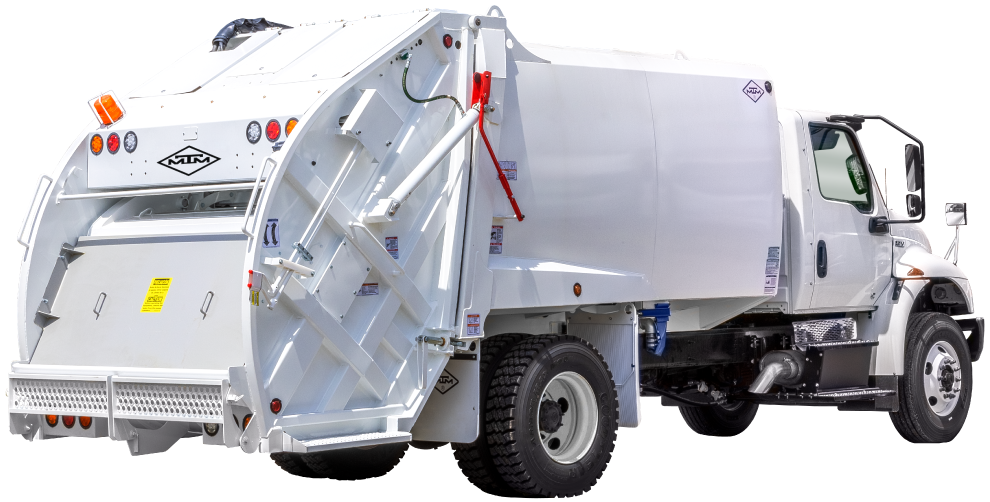

Performance

  • Slide and blade cycle: 22-24 seconds. Cycle times may vary slightly.
  • Compaction: 650-900 pounds per yard, depending on refuse density.
Learn more

Chassis Specifications Requirements

Dimensiones
Model 17 yd³ 20 yd³ 25 yd³
Chassis 2 ejes (4×2) 2 ejes (4×2) 3 ejes (6×4)
Gross Vehicle Weight 41,888 lb (19,000 kg) 41,888 lb (19,000 kg) 52,911 lb (24,000 kg)
Front Axle 8,818 lb (4,000 kg) 12,125 lb (5,500 kg) 13,228 lb (6,000 kg)
Tandem Axle 27,558 lb (12,500 kg) 29,762 lb (13,500 kg) 39,683 lb (18,000 kg)

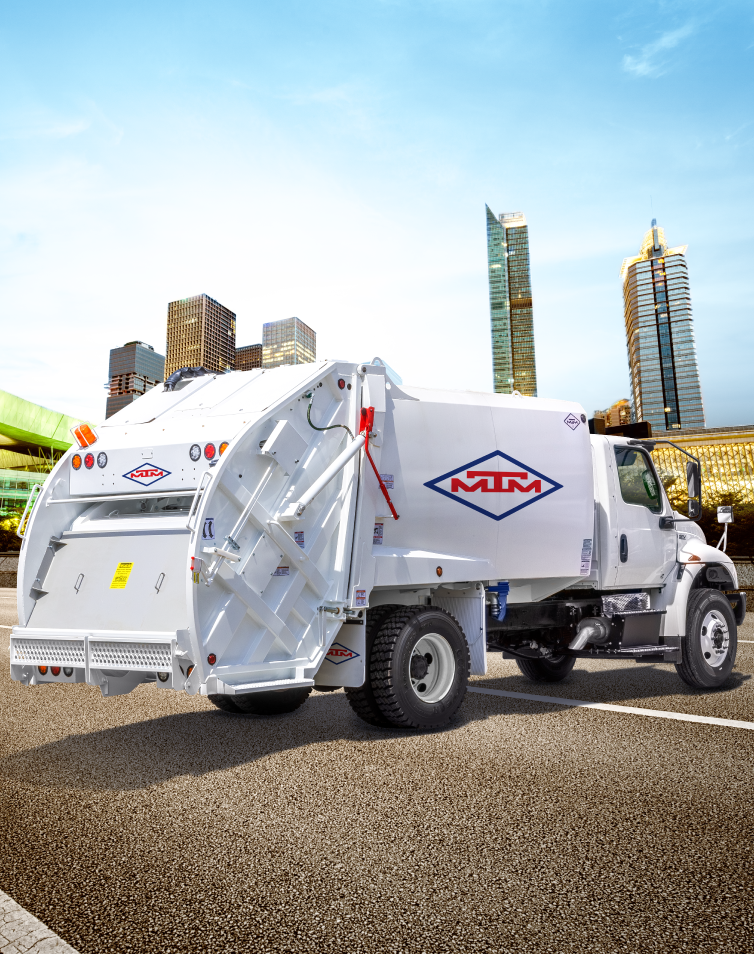

Construction Specifications

Dimensiones
  • The Metropak box is recognized for its compaction capacity exceeding 500kg/m³.
  • Semi-elliptical body design made of high-strength AR200 steel.

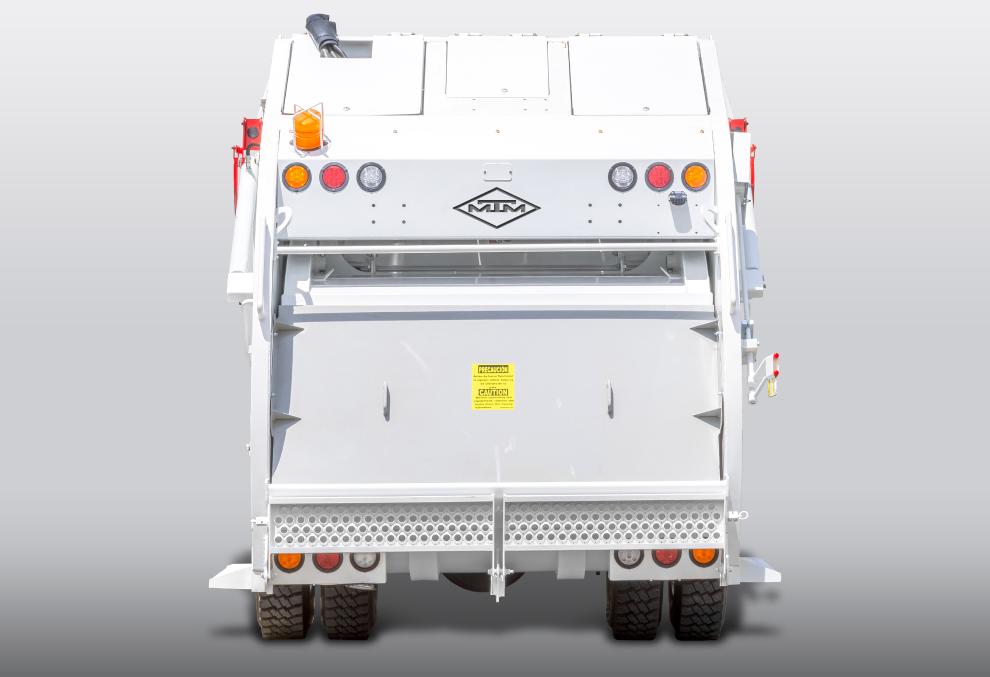

  • Use of hydraulic cylinders with very high surface hardness due to a chemical-thermal nitriding treatment, and a high-efficiency hydraulic circuit with low fluid demand.
  • The box floor is smooth to avoid stress concentration, reinforced with central and side loaders, facilitating cleaning and maintenance.
  • Paint and surface finish are achieved through prior cleaning with shot blasting, primer application, polyurethane-based paint, and final curing in enclosed ovens.
  • Additionally, box maintenance was improved by redesigning the lubrication points of the pivots that allow rotation and movement during regular operation
