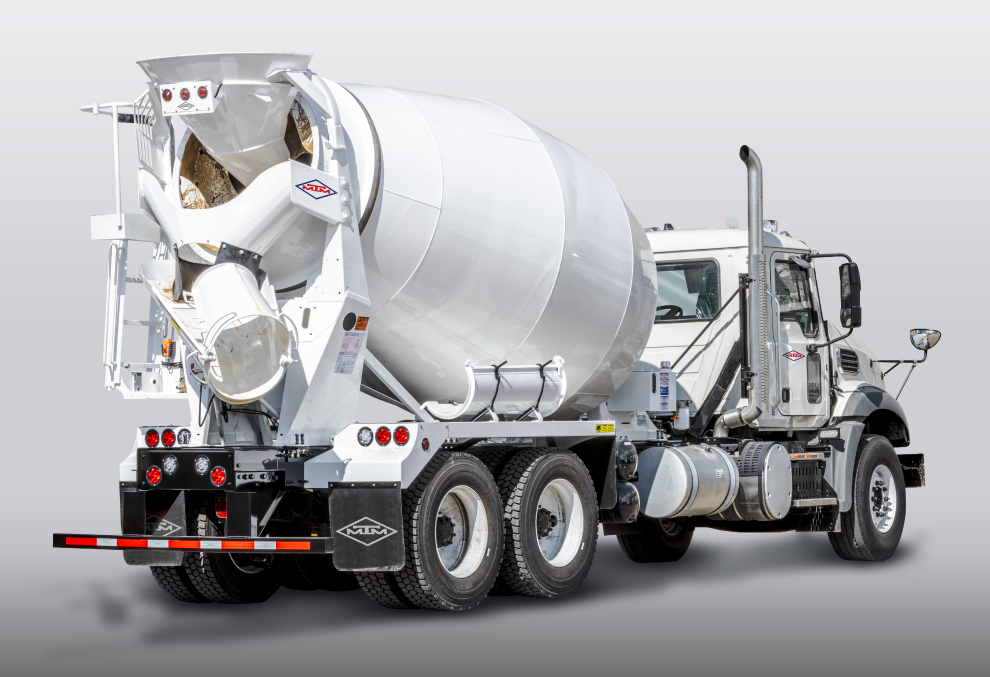

Paver

Specialized in Concrete Pavements
The Paver Mixer is designed to meet the demands of the paving industry. Its more aggressive fins profile, a 46” discharge opening, and an adjustable loading hopper with a double-action piston ensure fast and uniform discharge in every project. Ideal for those seeking precision and efficiency in concrete placement.

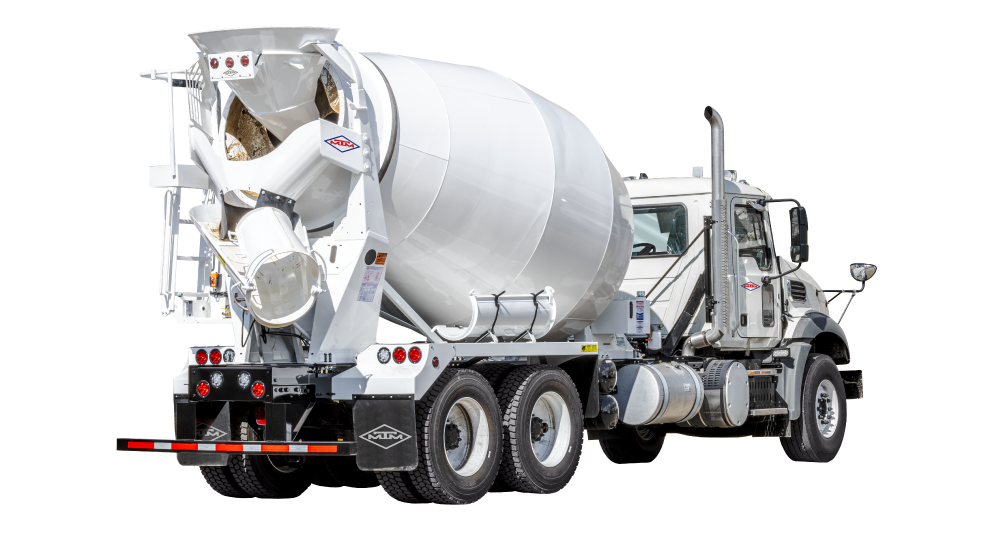

Performance

  • High efficiency for mixing concrete with slump values between 3 and 8.
  • Optimal mixing in just 4 minutes after 70 revolutions within the batching plant.
  • 46” discharge opening and wider hopper to speed up discharge time on-site.
  • Internal spiral fins with a more aggressive profile and welded rods along the drum for efficient mixing and quick discharge.
Learn more

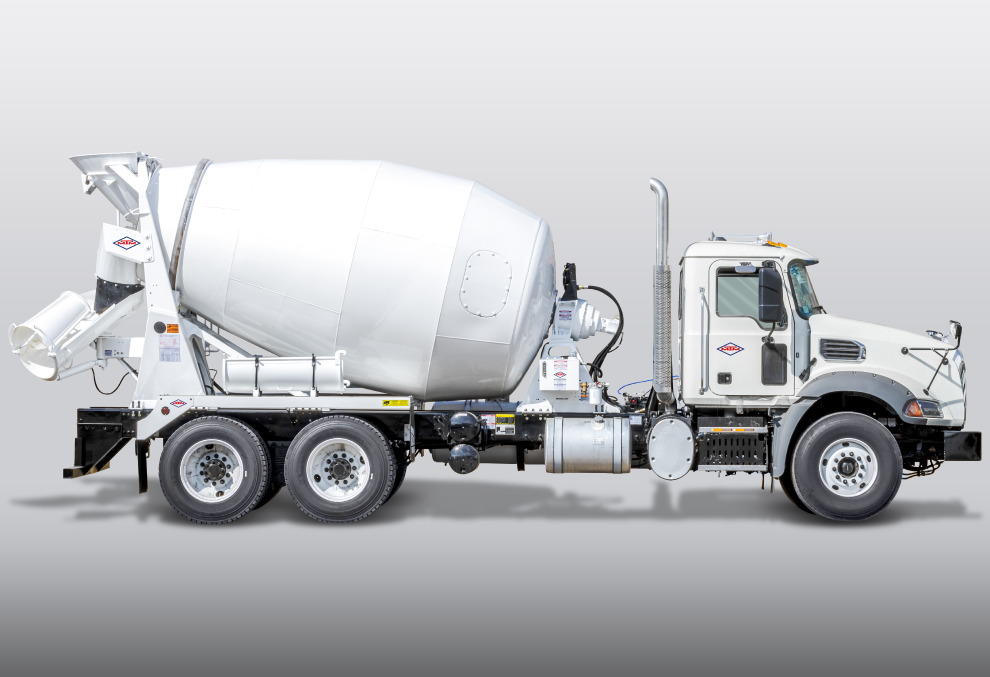

Chassis Specification Requirements

Dimensiones
  • Model
  • 10.5 Yd³
  • Chassis
  • 3 ejes (6×4)
  • Gross Vehicle Weight
  • 68,343 lb (31,000 kg)
  • Front Axle
  • 18,740 lb (8,500 kg)
  • Tandem Axle
  • 49,604 lb (22,500 kg)

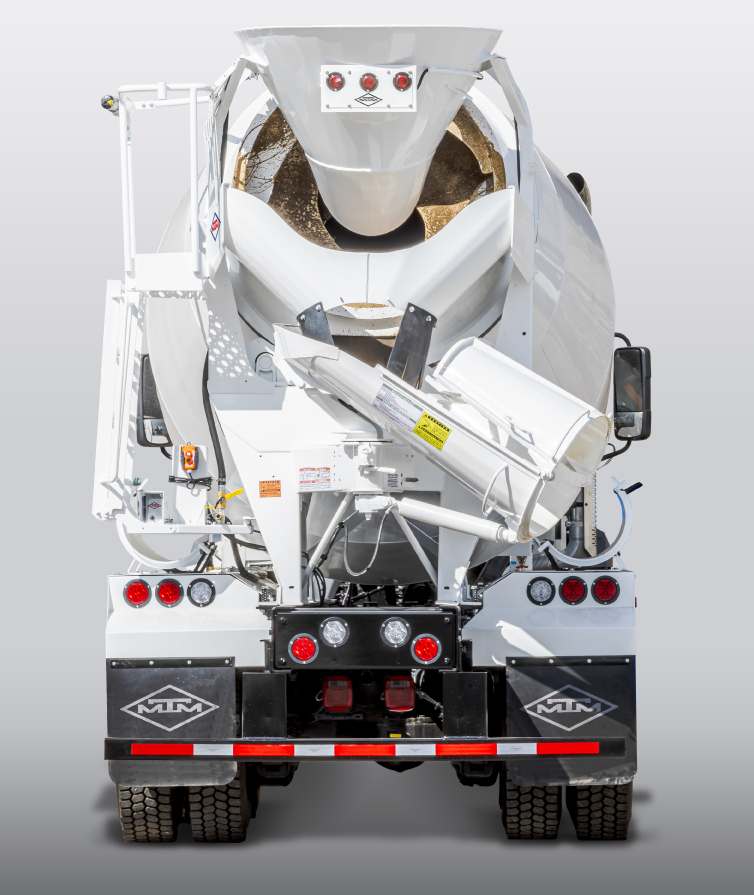

Construction Specifications

Dimensiones
  • The durability of the mixing drum is achieved using AR200 high-abrasion-resistant steel, with a thickness of 1/4″ for both the drum body and internal fins.
  • The drum head is made of A572 grade 50 steel at 1/4″, a popular grade used in structural applications.
  • Extended discharge channel for a more efficient concrete flow.
  • Adjustable loading hopper with a double-action piston for greater versatility.
  • Drum rotation powered by ZF or PMP gear reduction boxes, recognized worldwide.
  • Hydraulic pump and motor by PMP, ensuring a high-efficiency circuit.
  • Shotblasting process for mechanical cleaning before painting.
  • High-durability polyurethane paint with high solid content, cured in an oven.
  • Optimized design for easy access to key maintenance points.
  • All MTM drums are mounted after an in-depth load distribution analysis, ensuring an optimal center of gravity. This provides unbeatable chassis-mixer drum safety, easy maneuverability, and lower maintenance costs for chassis components such as tires, brakes, and suspension.
  • The internal spiral fins have welded rods along the entire length of the drum, designed with stamped fins to mix (not agitate) the concrete, ensuring outstanding efficiency in both mixing when rotating in one direction and fast, efficient discharge when rotating in the opposite direction.
Exclusive sale of mixers only in Mexico
